2G SFP Modül, SFP Modül

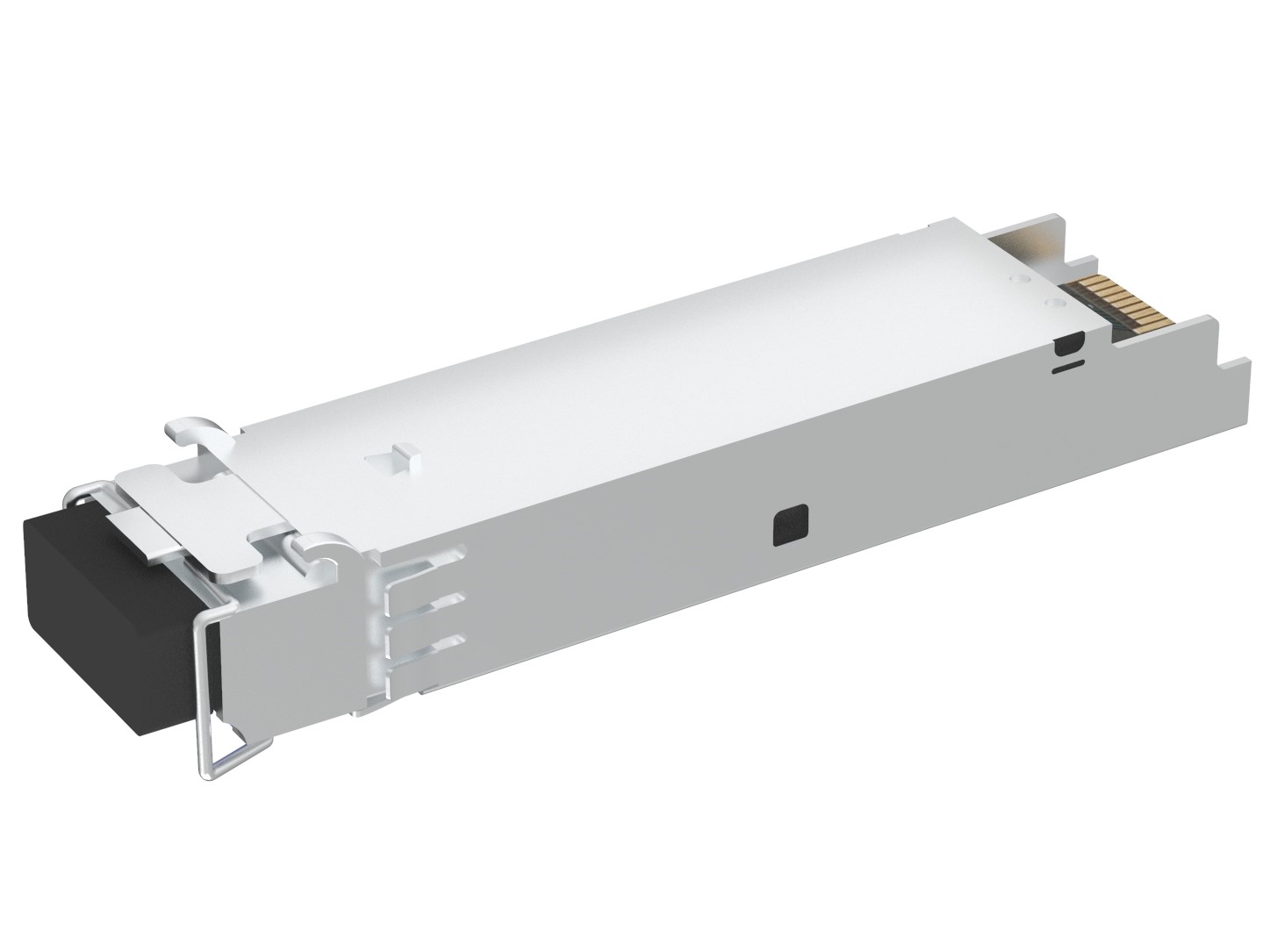

Intel TXN31111 Compatible 2G Fiber Channel SFP 850nm 300m DOM LC MMF Transceiver Module
Intel Compatible 2G Fibre Channel SFP Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Intel Compatible 2G Fibre Channel SFP Transceiver Module supports up to 300m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector.
Specifications
|
Part Number
|
SFP-2GSR-85
|
Vendor Name | Longline |
|
Form Factor
|
SFP |
Max Data Rate
|
2.67Gbps |
|
Wavelength
|
850nm |
Max Cable Distance
|
300m @ 2.67Gbps
|
|
Connector
|
LC duplex |
Optical Components
|
VCSEL 850nm |
|
Media
|
MMF |
DOM Support
|
Yes
|
|
TX Power
|
-9.5 ~ – 3dBm |
Receiver Sensitivity
|
< -17dBm
|
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
Protocols
|
MSA Compliant |
