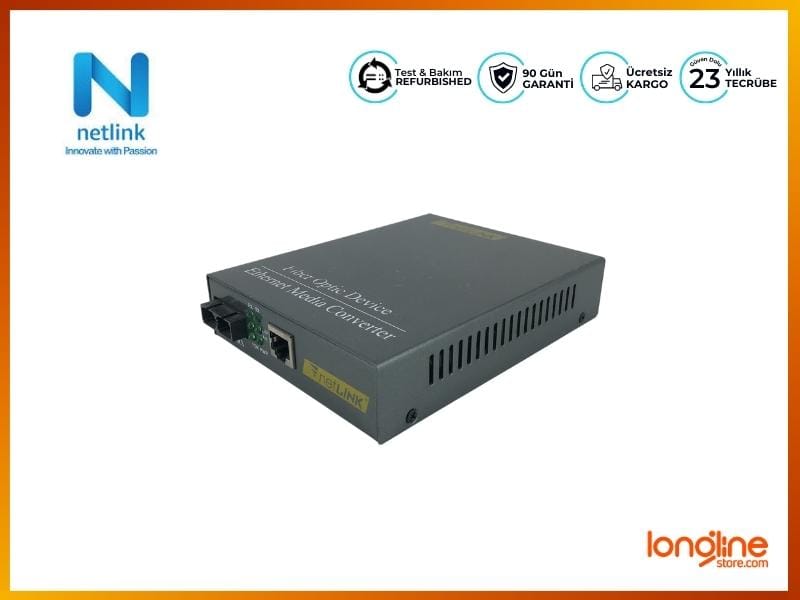

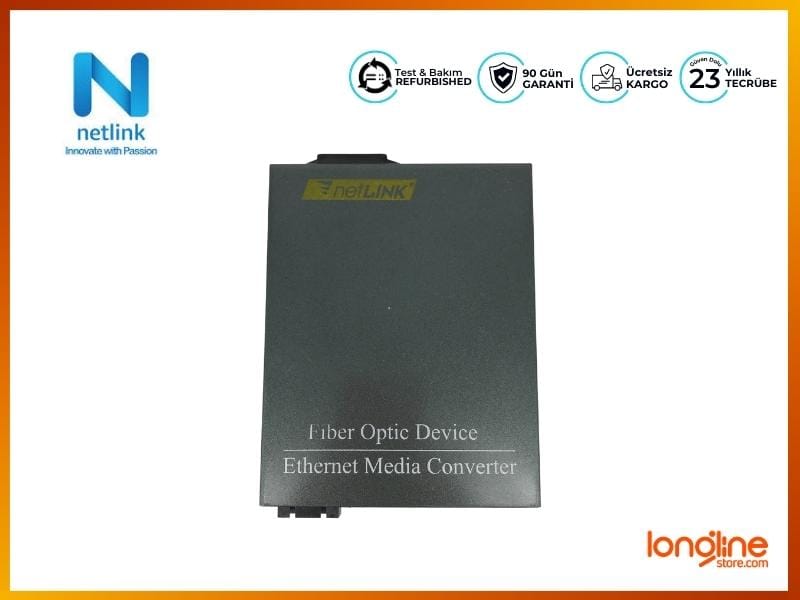

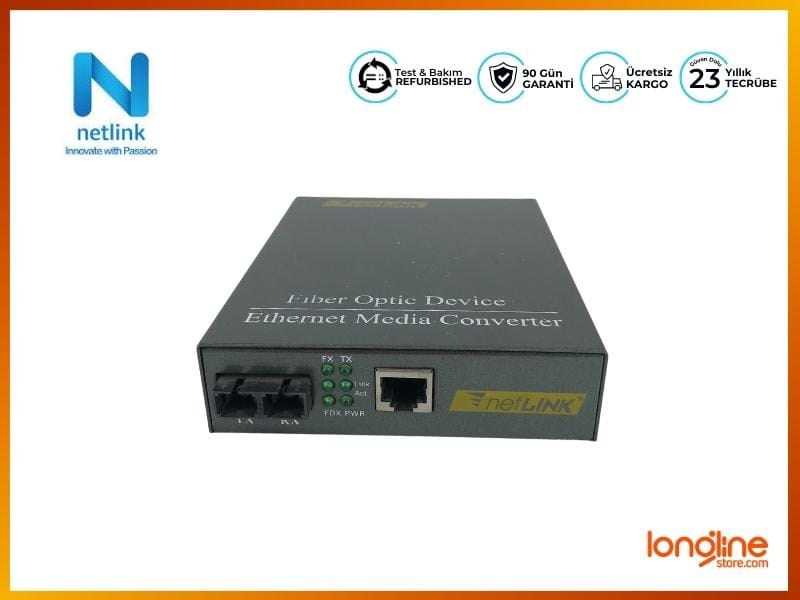

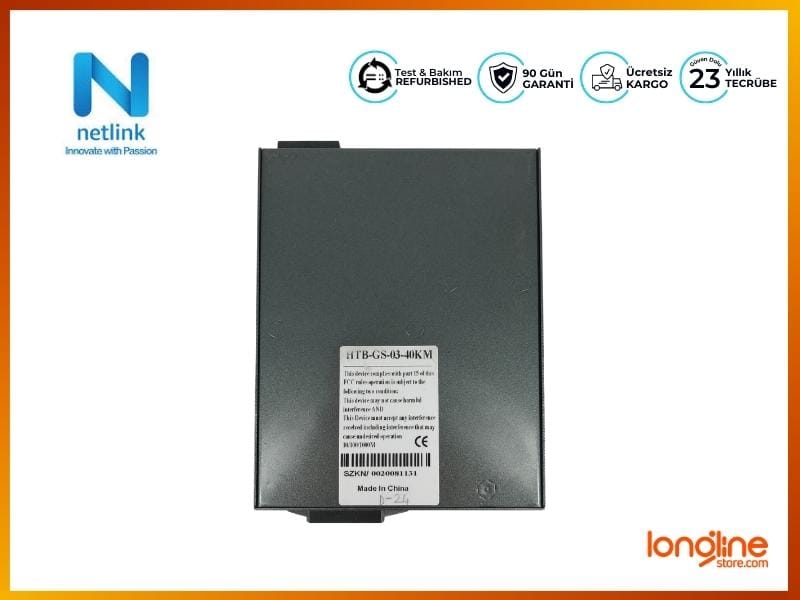

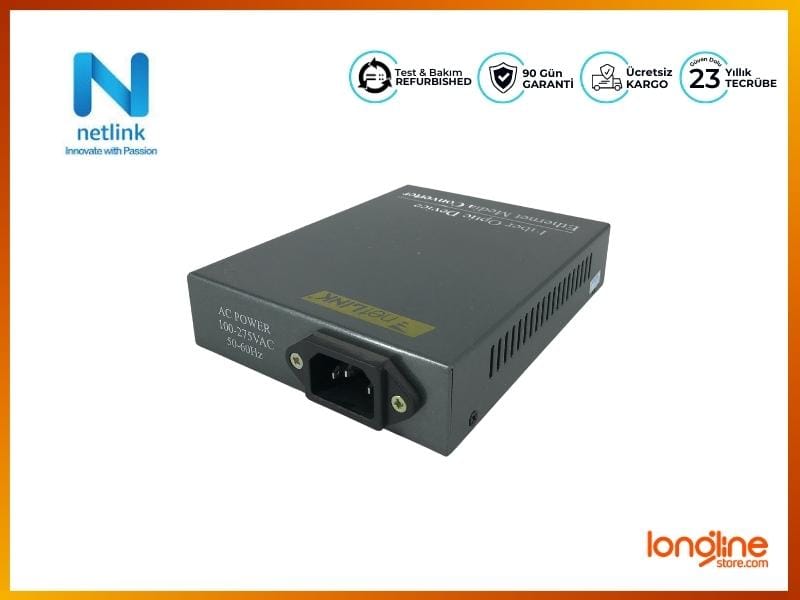

NETLINK 10/100M/1000M SINGLE-MODE FIBER OPTIC ETHERNET MEDIA CONVERTER HTB-GS-03

• Açıklama

Feature

• Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
• UTP port supports MDI / MDI-X auto crossover.
• Supporting the max 1536 byte Ethernet packet
• Supporting flow control
• Adopting internal power supply

Specification

• Operating standards: IEEE802.3z/AB 1000Base-T, 1000Base-SX/LX
• MAC address table:4K
• Data Buffer:256K
• Connector:
  • UTP: RJ-45, 10/100/1000Mbps
  • Fiber: SC,1000Mbps
• Cable:
  • UTP: Cat 5e or Cat 6 (the max distance up to 100m)
  • Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 550/224m)
  • Fiber (singlemode): 8.3/125, 8.7/125, 9/125μm (the max distance up to 100km)
• Flow Control
  • Full Duplex: IEEE802.3x flow control
  • Half Duplex: back pressure flow control
• Power: AC110-240V to DC5V; DC 48V to DC5V.
• Ambient temperature: 0 ~ 50 ℃
• Storage temperature: -40 ~ 70 ℃
• Humidity: 5% ~ 90%
• Dimensions: 40 (high) x 110 (width) x 140 (length) mm
